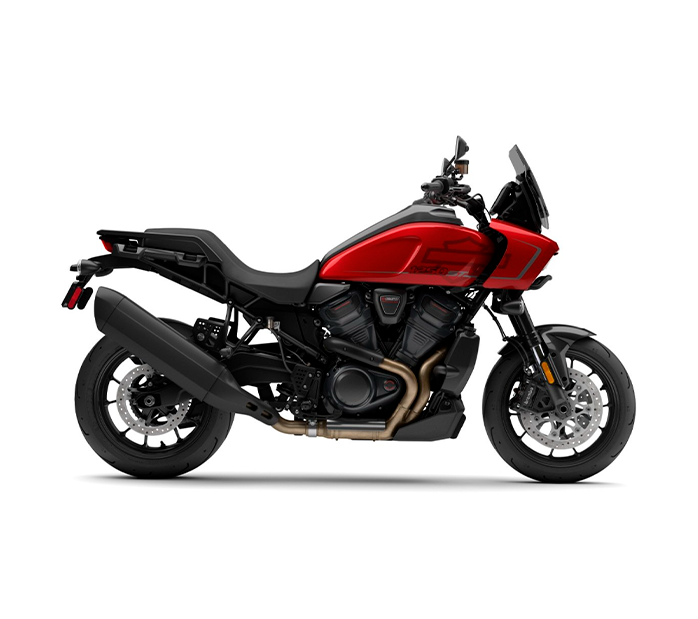

Pan America™ 1250 ST

Length:2240 mm

Broad:895 mm

Seat height, unloaded:825 mm

Ground clearance:170 mm

Fork angle:25

Advance:95 mm

Wheelbase:1580 mm

Tire, Type:Michelin® Scorcher "Sport"

Tires, front:120/70ZR17 58W

Tires, rear:180/55ZR17 73W

Fuel tank capacity:21.2 l

Oil capacity (with filter):4.5 l

Curb weight:246 kg

Motor+:Revolution® Max 1250

Diameter:105 mm

Career:72.3 mm

Cylinder capacity:1252 cc

Compression ratio:13.0:1

Food+:Electronic Sequential Fuel Injection (ESPFI)

Exhaust:2-in-1-in-1; catalyst in manifold

Engine torque test method:EC 134/2014

Torque+:127 Nm

Engine torque (rpm):6750

Power:150 hp / 112 kW @ 9000 rpm

Tilt angle, right (degrees):37

Tilt angle, left (degrees):37

Fuel consumption checking method:EU 134/2014

Fuel Savings+:5.7 l/100 km

CO2 emissions verification method:EU 134/2014

CO2 emissions:133 g/km CO2

Primary transmission:By gears, ratio 49/89

Gear ratio 1st:13.11

Gear ratio 2nd:9.687

Gear ratio 3rd:7.509

Gear ratio 4th:6.057

Gear ratio 5th:5.08

Gear ratio 6th:4.436

Front Suspension:47mm inverted fork with semi-active electronic damping adjustment. Aluminum triple clamps.

Rear Suspension:Hydraulic monoshock mounted via a linkage system, adjustable in compression, rebound and spring preload

Tires, front+:Made of cast aluminum, satin black

Tires, rear+:Made of cast aluminum, satin black

Brakes, caliper type:Front: 4-piston radial-mount monoblock caliper; Rear: single-piston floating caliper

Brakes, disc type:Front: Double floating disc mounted on the hub; Rear: Solid disc with expansion core

Lights (according to country regulations), headlight, taillights/brake lights/front turn signals:Headlight: Daymaker™ Adaptive LED Headlight; Taillight/Brake Light: Full-LED Taillight with Signature Lights; Front Turn Signals: Bullet-Style LED Turn Signals

INSTRUMENTATION:6.8" TFT display with speedometer, gear, odometer, fuel level, clock, trip meter, ambient temperature, low temperature warning, sidestand down warning, crash warning, cruise control, remaining range, and tachometer. Bluetooth smartphone compatibility for accessing phone calls, music, and navigation (HD App ONLY)

Screen Size:173 mm

Guy:Color TFT / Touch

Headphone specifications (if any):Bluetooth

Languages:Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

Hands-free mobile phone, via Bluetooth:Serial

Voice Recognition Languages: Phone Features Only:According to the phone

Voice recognition languages: Tuner/Media/Navigation:According to the phone

Driver/passenger intercom:Only with headphones

Vehicle information display (air temperature, oil pressure and EITMS):TPMS, engine temperature, battery voltage, ambient temperature

Text-to-Speech (TTS) Languages:According to the phone

USB:USB-C, 5V, 3A for device charging and software updates

Bluetooth:Compatible with phone/playback devices
