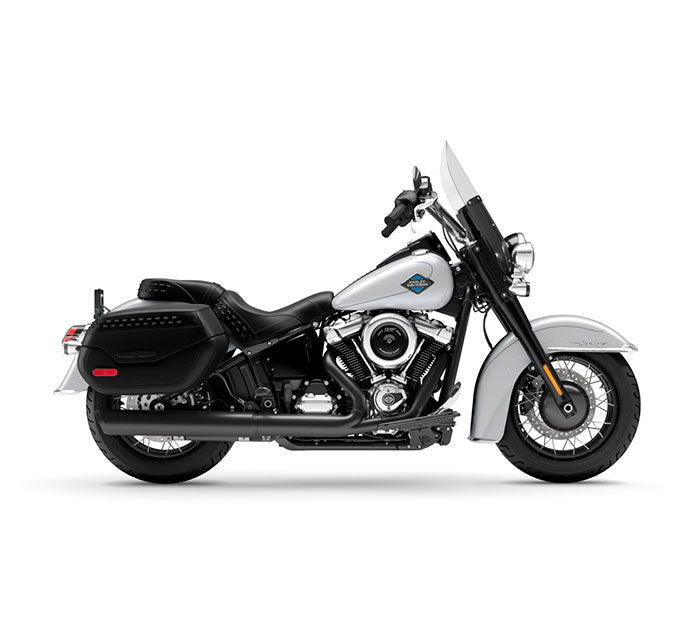

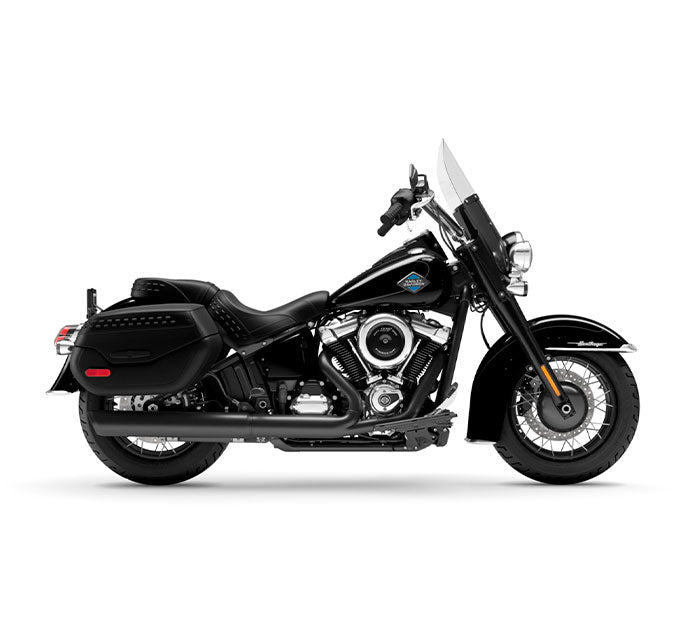

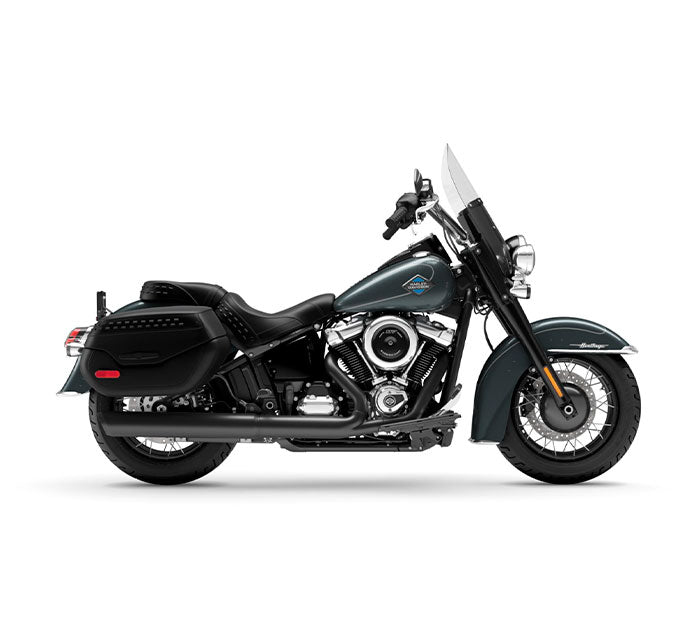

Heritage Classic

Length:2415 mm

Broad:930 mm

Seat height, unloaded:690 mm

Ground clearance:120 mm

Fork angle:30

Advance:140 mm

Wheelbase:1630 mm

Tire, Type:Dunlop® Harley-Davidson Series, diagonal, with black sidewalls front and rear

Tires, front:130/90B16,73H,BW

Tires, rear:150/80B16.77H,BW

Fuel tank capacity:18.9 l

Oil capacity (with filter):4.7 l

Curb weight:326 kg

Luggage rack capacity: volume:0.045 m³

Motor+:Milwaukee-Eight® 117 Classic

Diameter:103.5 mm

Career:114.3 mm

Cylinder capacity:1923 cc

Compression ratio:10.3:1

Food+:Electronic Sequential Fuel Injection (ESPFI)

Exhaust:2-in-1; catalyst in manifold

Engine torque test method:EC 134/2014

Torque+:156 Nm

Engine torque (rpm):2750

Power:91 hp / 68 kW @ 5020 rpm

Tilt angle, right (degrees):27.4

Tilt angle, left (degrees):27.4

Fuel consumption checking method:EU 134/2014

Fuel Savings+:5.5 l/100 km

CO2 emissions verification method:EU 134/2014

CO2 emissions:128 g/km CO2

Primary transmission:Chain, secondary ratio 34/46

Gear ratio 1st:9.311

Gear ratio 2nd:6.454

Gear ratio 3rd:4.793

Gear ratio 4th:3.882

Gear ratio 5th:3.307

Gear ratio 6th:2.79

Front Suspension:49mm dual-valve flex telescopic fork with aluminum triple clamps; dual-stage spring, with beer can covers

Rear Suspension:Hidden coil spring and free piston monoshock, 43 mm travel, hydraulic preload adjustment

Tires, front+:Black tubeless with 32 shiny spokes

Tires, rear+:Black tubeless with 32 shiny spokes

Brakes, caliper type:4 fixed pistons at the front and 2 floating pistons at the rear

Brakes, disc type:Solid state drives with expansion core

Lights (according to country regulations), headlight, taillights/brake lights/front turn signals:Headlights: Full LED high and low beams and signature daytime running light; Taillight/brake light: Buffett-style LED; Front turn signals: Bullet-style LED turn signals

INSTRUMENTATION:5" analog speedometer with digital gear indicator, odometer, fuel level, driving modes, heated trim, traction control, ABS, TPMS, cruise control, time clock, trip meter, remaining range, and tachometer

Voice recognition languages: Phone functions only

Voice recognition languages: Tuner/Media/Navigation

Text-to-speech (TTS) languages
